In the domain of Fiber-to-the-Home (FTTH) and optical access networks, Gigabit Passive Optical Network (GPON) technology stands as the most widely deployed global standard. However, with the exponential rise of high-bandwidth, latency-sensitive services—such as 4K/8K streaming, VoIP, cloud gaming, and IoT telemetry—a fundamental engineering question arises: How does the GPON architecture ensure that hundreds of distinct data streams travel across a single strand of glass without collision or degradation?

The answer lies within the foundational transmission layer of GPON, specifically the orchestration between the GEM Port (GPON Encapsulation Method Port) and the T-CONT (Transmission Container).

1. The Core Challenge: Bandwidth Allocation vs. Service Routing

In a standard GPON deployment, the network comprises an OLT (Optical Line Terminal) at the central office and multiple ONUs/ONTs (Optical Network Units/Terminals) at the customer premises. While downstream traffic is broadcasted, upstream transmission is a shared medium. To prevent collision, GPON utilizes T-CONTs.

A T-CONT is a logical buffer designed from a bandwidth management perspective to support upstream Dynamic Bandwidth Allocation (DBA). It defines the quantity and class of bandwidth allocated to an ONU (e.g., Fixed, Assured, or Best-Effort bandwidth). However, a T-CONT only regulates the "quota" and "timeslots" of the transmission; it remains agnostic to the specific service type or identity of the data packets.

To classify and route specific service flows, the GPON architecture introduces the GEM Port.

2. What is a GEM Port?

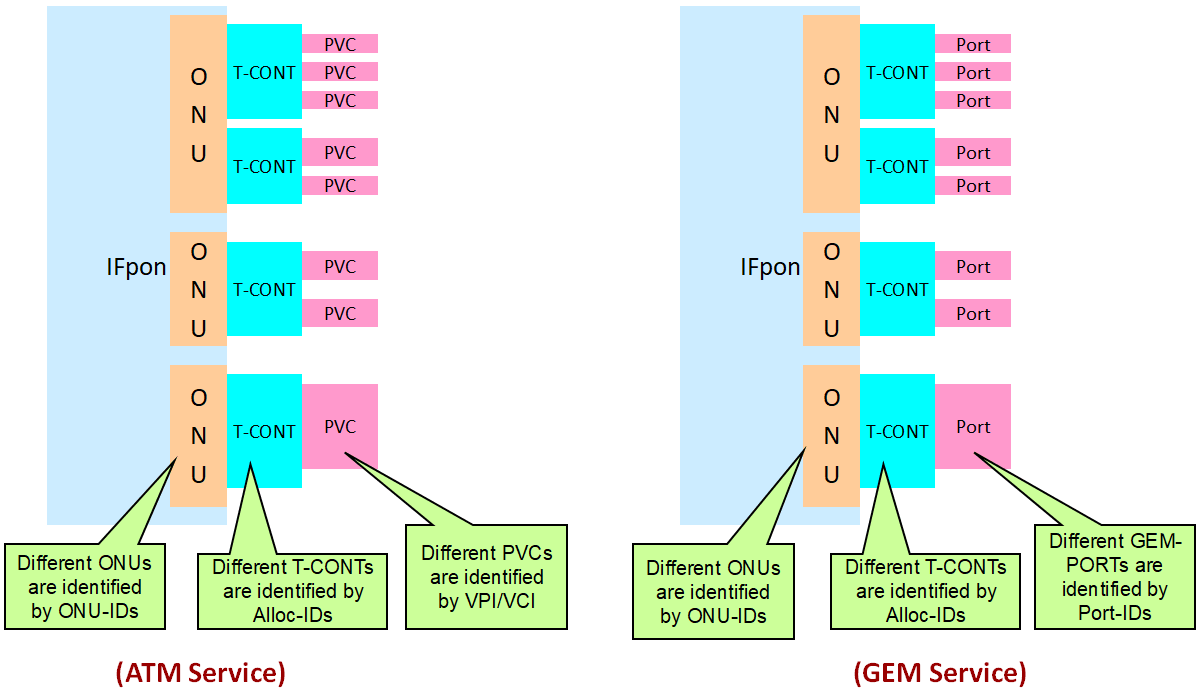

A GEM Port is the smallest service-bearing unit established between the OLT and the ONU. It operates as a virtual, connection-oriented logical channel. Much like legacy ATM networks relied on VPI/VCI pairs to establish virtual connections, GPON relies entirely on GEM Ports to encapsulate and transport data.

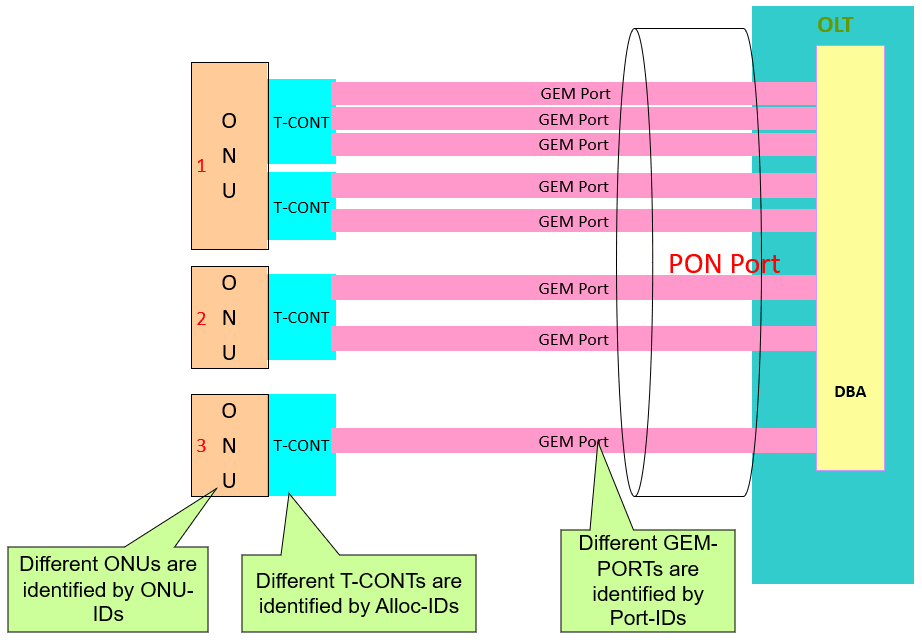

• Unique Identification: Within a single OLT PON interface, every GEM Port is uniquely identified by a Port-ID, spanning a range from 0 to 4095.

• Virtual Routing: Rather than a physical pipeline, it is a logical construct that acts as a network address to indicate the exact direction and destination of specific data streams.



3. Traffic Flow to GEM Port Mapping Modes

Before user data traffic enters the GPON interface, it must be assigned to an appropriate GEM Port according to pre-defined Mapping Modes. In live telecom networks, engineers primarily utilize two major mapping mechanisms:

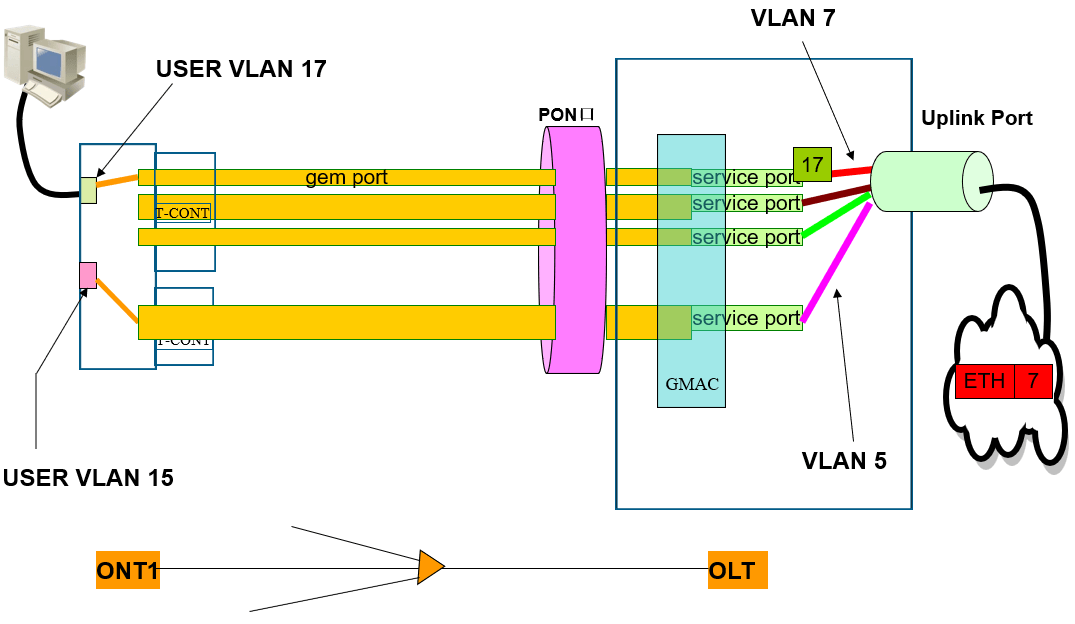

• VLAN-Based Mapping: Traffic is classified and routed according to its Virtual LAN (VLAN) tag. For instance, all IPTV traffic (VLAN 100) maps to GEM Port 1, while high-speed Internet traffic (VLAN 200) maps to GEM Port 2.

• Priority-Based Mapping: Traffic is filtered by 802.1p priority bits (Class of Service). Time-sensitive voice traffic (Priority 7) is dedicated to a premium GEM Port, whereas standard background downloads are directed to a lower-priority port.



4. The Structural Hierarchy: GEM Port to T-CONT

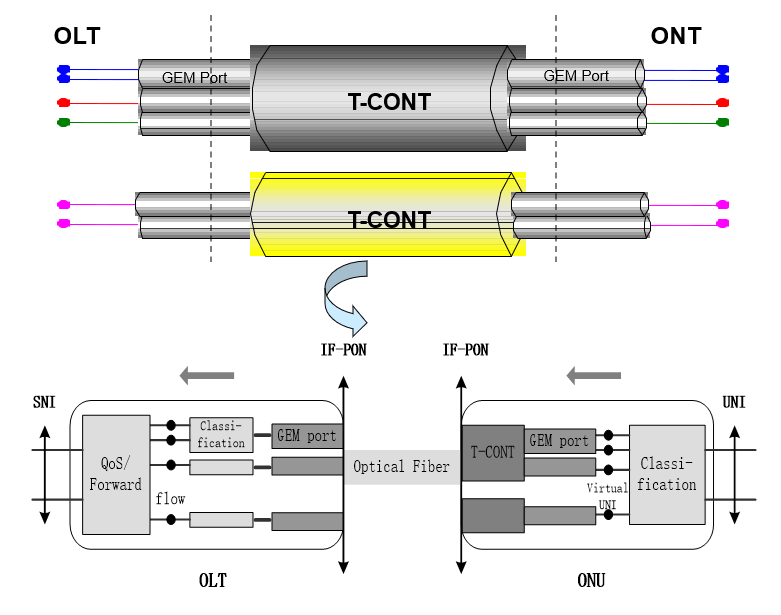

Inside the GPON interface of an ONU, the service traffic follows a strict hierarchical pipeline: User Services (Flows) ➔ Mapped to GEM Ports (Virtual Pipes) ➔ Bound to T-CONTs (Bandwidth Buffers) ➔ Transmitted over PON Interface (IF PON)

This structural approach provides immense engineering flexibility:

• 1:1 Mapping: A single GEM Port maps exclusively to one T-CONT. This scheme is ideal for highly sensitive, fixed-bandwidth channels like VoIP or enterprise dedicated lines requiring absolute isolation.

• N:1 Mapping: Multiple distinct GEM Ports consolidate into a single T-CONT. For example, web browsing, email, and file downloads can maintain unique GEM Ports for granular traffic classification, yet share the same "Best Effort" T-CONT bandwidth pool to maximize optical line efficiency.



5. Conclusion

By decoupling the access network into GEM Ports (which handle traffic identity and service routing) and T-CONTs (which handle dynamic bandwidth management), GPON architecture achieves unparalleled operational efficiency in FTTH networks. This comprehensive Quality of Service (QoS) framework serves as the technological backbone for modern, multi-service fiber-optic networks.
