Attributes |
Description |
|
Interface |

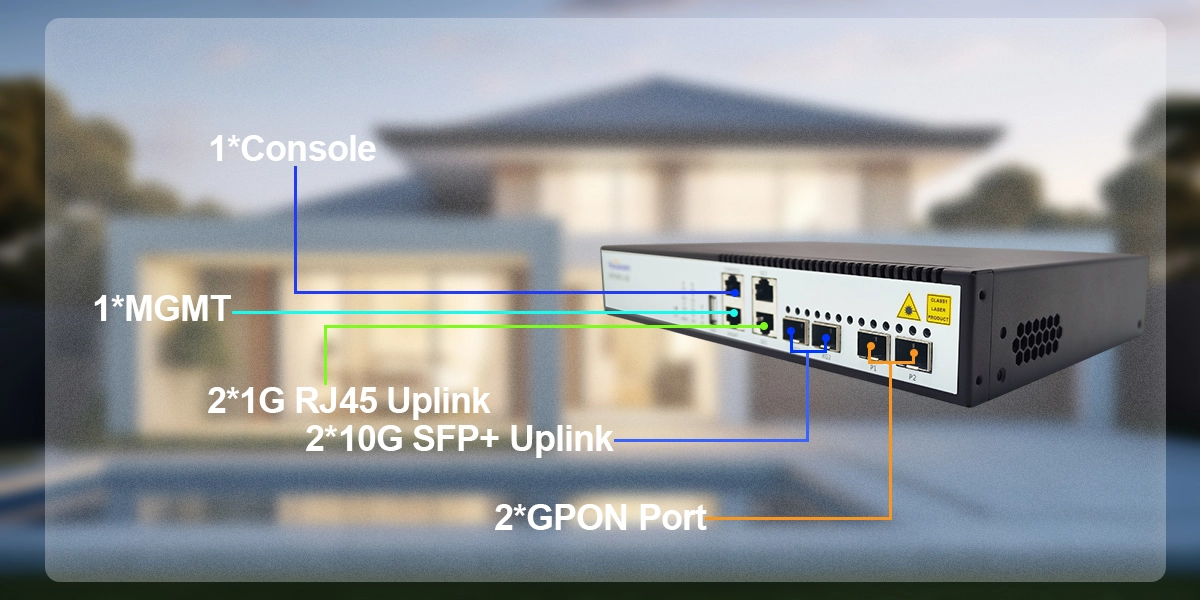

2*GPON Port, 2*10/100/1000M Base-T; 2*1000M Base-X SFP/2*10GE SFP+ |
|
Exchange Capacity |
51.5Gbps |
|
Forwarding Rate |
59.7Mpps |
|
Memory & Flash |
Memory: 32MB; Storage: 512MB |
|
Management Port |
Console, MGMT |
|
PON |
Complies with ITU-T G.984/G.988 standards 20 km physical differential distance, 60 km logical distance 1:128 maximum splitting ratio Standard OMCI management features Flexibly compatible with any brand of ONTs Supports batch software upgrades for ONUs |
|

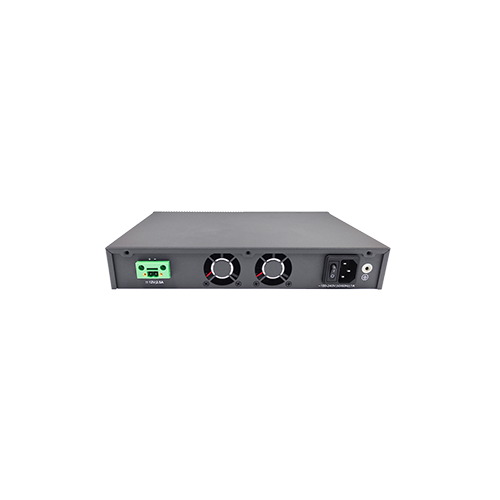

Fan |
Fixed fans (two fans) |
|
Power |
AC: 100~240V 47/63Hz; DC: 12V |
|
Power Consumption |
≤30W |
|
Weight |
2kg |
|
Dimensions (W *H *D) |
265mm*40mm*180mm |
|
Environment Temperature |
Working Temperature: -10°C~55°C Storage Temperature: -40°C~70°C |
|
Environment Humidity |
Operating Humidity: 10%~95% (non-condensing) Storage Humidity: 10%~95% (non-condensing) |
Ø Maximum split ratio of 1:128, connecting up to 256 ONTs
Ø Rich Layer 2/3 switching features, flexible management methods
Ø Comply with ITU-TG.984/G.988 standard
Ø Support FlexLink, STP, RSTP, MSTP, ERPS, LACP, ACL, QoS
Ø Support 16K MAC address
Ø Support RIP、OSPF、BGP、ISIS and IPV6
Ø Provides redundant power backup
Ø Supports terminal power-off alarm notifications.
Ø Support Power redundancy backup

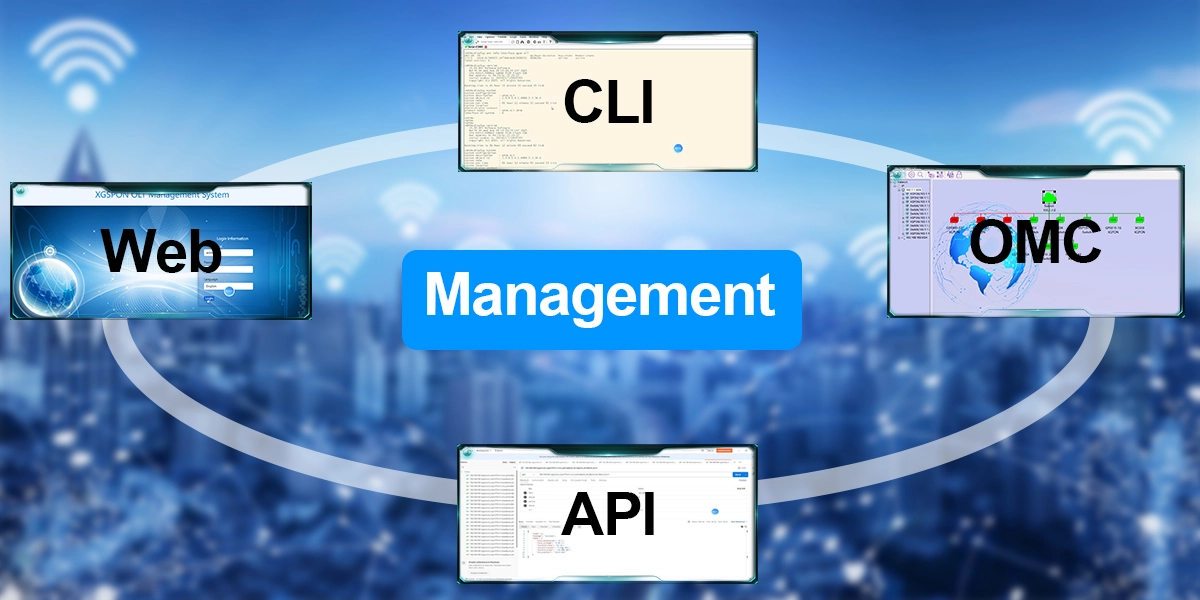

Ø Support CLI, Telnet, WEB, SNMP v1/v2/v3, SSH2.0, OMCI protocol
Ø Support batch software upgrades on ONUs
Ø Flexibly compatible with any brand of ONT
|
Model Number |
Description |
|

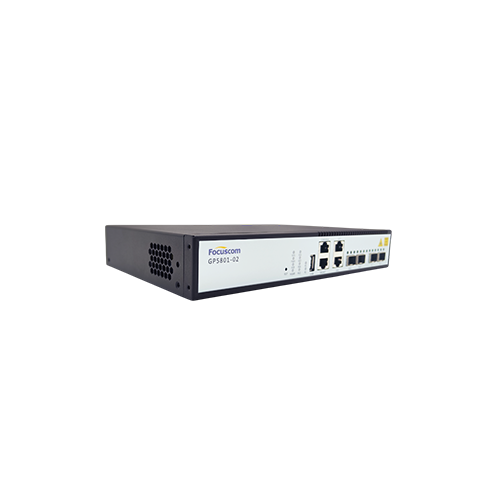

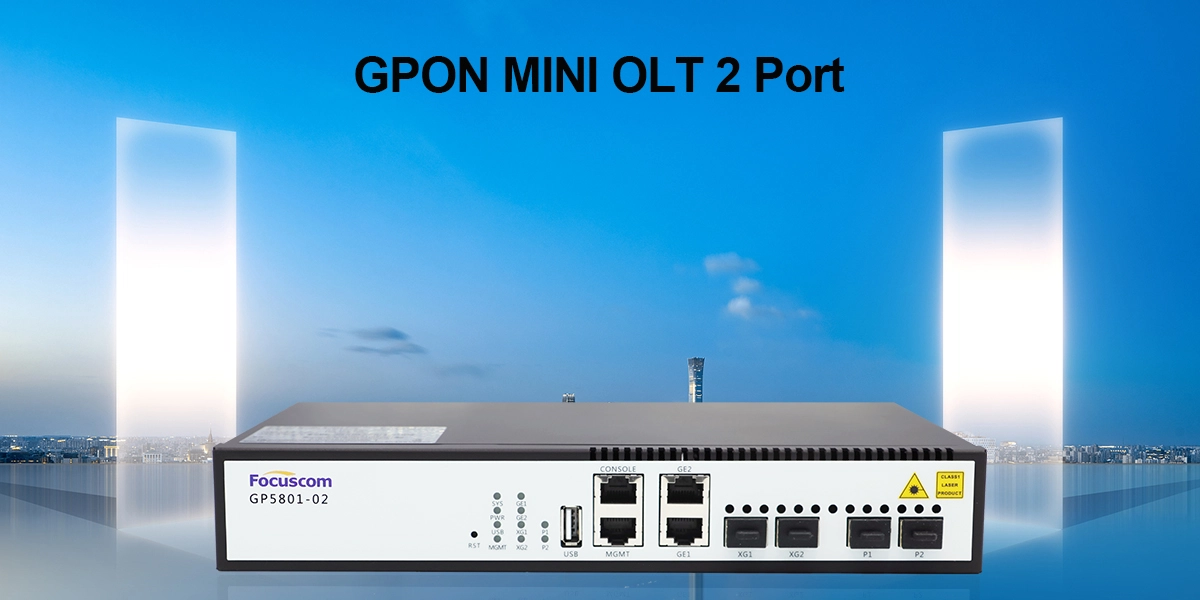

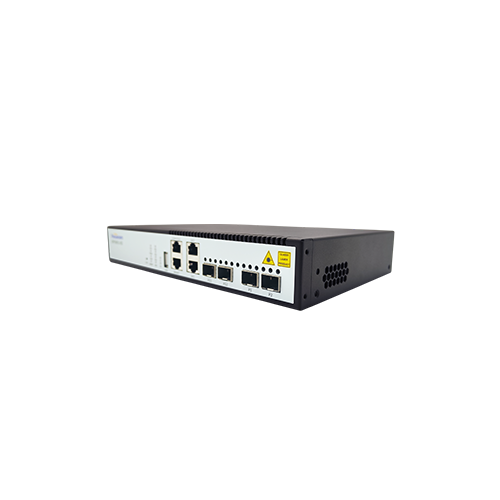

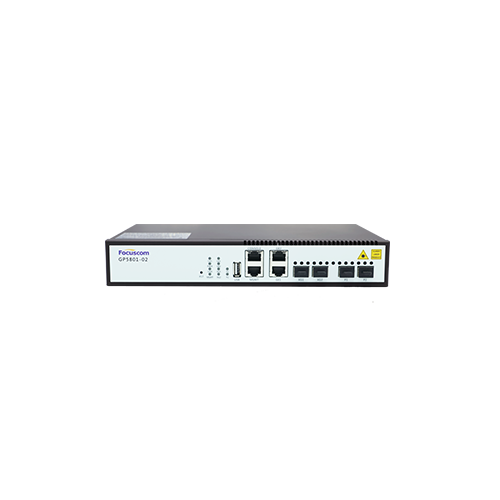

GP5801-02 |
2*GPON port+2GE RJ45+2*GE/10GE SFP+ uplink port |
|
GPON PON Transceiver (GPON SFP-Transmit 1490nm/Receive 1310nm, 7dBm, SC interface-Class C++) |
|
|
AC/DC optional dual power supply |
|
|
EU & US power plug optional |
